อินเวอร์เตอร์เชิ่อมต่อสายส่งการไฟฟ้าขนาด
 กดเพื่อขยายขนาด |
|

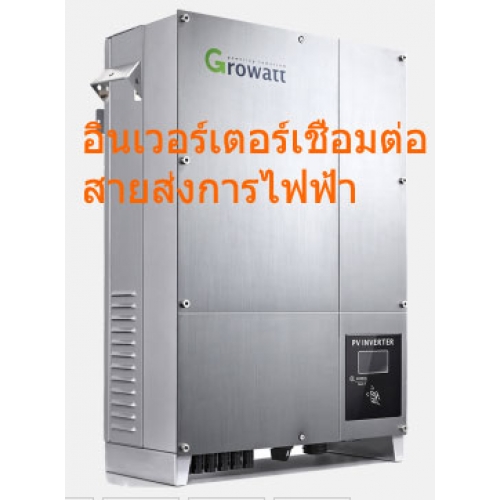

Product Name อินเวอร์เตอร์เชื่อมต่อสายส่งการไฟฟ้า ขนาด 10KW _12KW_18KW_20KW
Specifications
Maximum efficiency of 98%
Multi MPP controller
MTL String
Bluetooth technology&Sound control
Growatt PV Inverter 10000UE,12000UE,18000UE,20000UE Series
General Descriptions
> DC input voltage of up to 1000 V
> Maximum efficiency of 98 %
> Internal DC Switch
> Transformerless
> Compact design
> Muti MPP controller
> MTL-String
> Bluetooth Technology
> Easy installation
> Sound control
> Comprehensive Growatt warranty program
Europe ENS
> Simple national setting of line supply monitoring(ENS)
> Easy country configuration
> Muti-language display
> Currently available for Germany France UK Austria Switzerland Italy and Spain
Communications
> RS485 /RS232/GPRS interfaces
>Computer monitoring software
> Standards complied: VDE0126-1-1, IEC62109, RD 1663, G59, G83, EN61000-6-2, EN61000-6-3, AS4777, AS/NZS 3100, ENEL-Guide, VDE-AR-N4105, CEI 0-21
Technical Specifications
|
Model |
Growatt10000UE |
Growatt12000UE |
Growatt18000UE |
Growatt20000UE |
|
INPUTDATA |
||||
|
Max. DC Voltage |
10200W |
12250W |
18400W |
20000W |
|
MPP Voltage Range |
400V-800V |
400V-800V |
400V-800V |
400V-800V |
|
Max DC voltage |
1000V |
1000V |
1000V |
1000V |
|
Max. DC Power |
10.4kWp |
12.5kWp |
15.6kWp |
22kWp |
|
Max. Input Current |
15A/15A |
17A/17A |
23A/23A |
25A/25A |
|
Number of MPP Trackers/ |
2 |
2 |
2 |
2 |
|
Strings Per MPP Tracker |
2/2 |
2/2 |
3/3 |
3/3 |
|
DC connections |
MC4(optinal MC3) |
MC4(optinal MC3) |
MC4(optinal MC3) |
MC4(optinal MC3) |
|
OUTPUT (AC) |
||||
|
Rated Output Power |
10kW |
12kW |
18kW |
19.5kW |
|
Max. AC Output Current |
16A |
19A |
29A |
32A |
|
AC Voltage Range |
3/N/PE 230~400V |
3/N/PE 230~400V |
3/N/PE 230~400V |
3/N/PE 230~400V |
|
Rated Grid Frequency |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
|
Output Current THD |
< 3% (at nominal power) |
|||
|
Power Factor |
0.8(lagging)~0.8(leading) |
|||
|
AC connection |
Three phase |
Three phase |
Three phase |
Three phase |
|
SYSTEM |
||||
|
Max. Efficiency |
98.00% |
98.00% |
98.00% |
98.00% |
|
Euro. Efficiency |
97.50% |
97.50% |
97.50% |
97.50% |
|
Protection Degree |
IP65(outdoor) |
IP65(outdoor) |
IP65(outdoor) |
IP65(outdoor) |
|
Power Consumption at Night |
0W |
0W |
0W |
0W |
|
Operating Temperature |
-25~+60°C |
-25~+60°C |
-25~+60°C |
-25~+60°C |
|
Cooling concept |
Fans |
|||
|
Ground failtrue detection |
yes |
|||
|
DISPLAY AND COMMUNICATIONS |
||||
|
Display |
LCD |
LCD |
LCD |
LCD |
|
Standard Comm. Interfaces |
RS485/RS232 |
RS485/RS232 |
RS485/RS232 |
RS485/RS232 |
|
Optional Comm. Interfaces |
GPRS/blue tooth |
|||
|
MECHANICAL DATA |
||||
|
Net Weight |
40kg |
40kg |
55kg |
55kg |
Description?
Ø Maximum efficiency of 96.5% and wide input voltage range
Ø DC switch optional
Ø High frequency
Ø Compact design
Ø MTL - String
Ø Bluetooth / RF technology / ZigBee
Ø Sound control
Ø Fanless cooling concept
Ø Easy installation
Ø High reliability
|
Model Specification |
Growatt 10000UE |
Growatt 12000UE |
Growatt 18000UE |
Growatt 20000UE |
|
Input data |
||||
|
Max. DC power |
10500W |
12500W |
18700W |
20800W |
|
Max. DC voltage |
1000V |
1000V |
1000V |
1000V |
|
Start Voltage??????? |
350V |
350V |
350V |
350V |
|
PV voltage range |
180V-1000V |
180V-1000V |
180V-1000V |
180V-1000V |
|
MPP voltage range/ nominal voltage |
300V-1000V/600V |
300V-1000V/600V |
300V-1000V/600V |
300V-1000V/600V |
|
Full load DC voltage range |
400V-800V |
400V-800V |
400V-800V |
400V-800V |
|
Max. input current |
15A/15A |
17A/17A |
23A/23A |
26A/26A |
|
Max. input current per string |
||||
