STC-G300

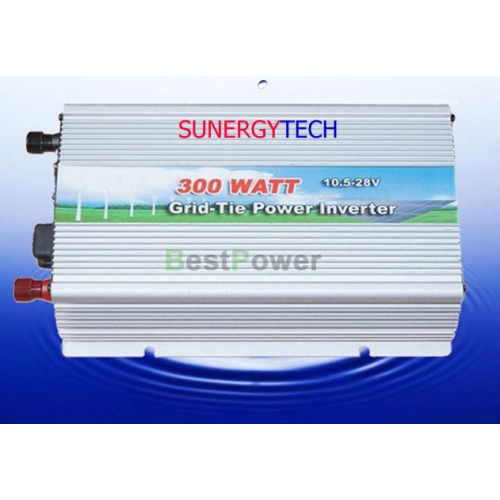

Grid Tie Inverter 300W

Code:STC-G300

Brand: RELIABLE

Model : GTI-300

Detail:อินเวอร์เตอร์สำหรับเชื่อมต่อสายส่งขนาด 300W

ใชกั้บระบบโซล่าเซลและกังหันลม ระบบ 12V

Installation & Connection:การติดตั้งและการต่อสาย

1.1 Red Terminal: to connect positive pole of DC; Black

Terminal: to connect negative pole of DC.

AC Socket: to connect grid.

Switch: Power Switch, after the proper connecting, turn on,

Inverter start working.

DC Input limits:

Operating Voltage range: 10.5V to 28V

Maximum input Voltage: 28V

Solar Panel: 30W minimum, only use PV panels with maximum

power voltage at 17.5V.

Can ONLY connect panels in parallel. DO NOT connect them

in series!

Wind Turbine: Rated output voltage 24VDC, Maximum voltage

28VDC

AC Output:

Grid Connection:

220V AC version: 170V-250V, 50Hz

110V AC version: 90V-140V, 60Hz

Island Protection: Automatically disconnect when the grid is

tripped

Maximum quantity of Pure Sine-wave Inverters allowed on a

main circuit: No limited

LED Indicators:

Red LED on: Input DC voltage is too high or low (less than

10.5V or more than 28V)

Red LED on: Over Heat protection once over 70?, automatic

restart after cooling down for about 2-10 minutes.

Red LED on: Grid blackout fault

Green LED Flashing: Output power in the state of regulation.

Green LED on continuously: Inverter works normally,constantly max. output power
